PROJECT DETAILS

Design: BATEMAN Engineering Ltd

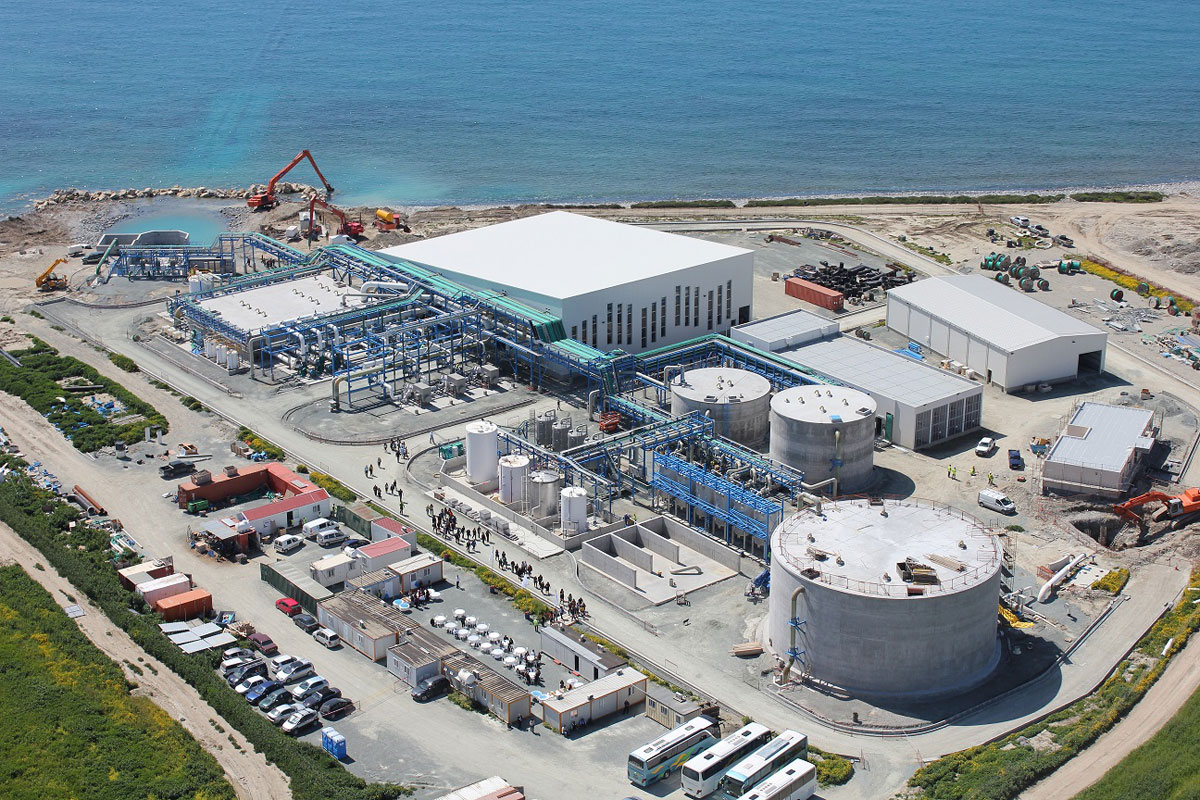

Location: Limassol Cyprus

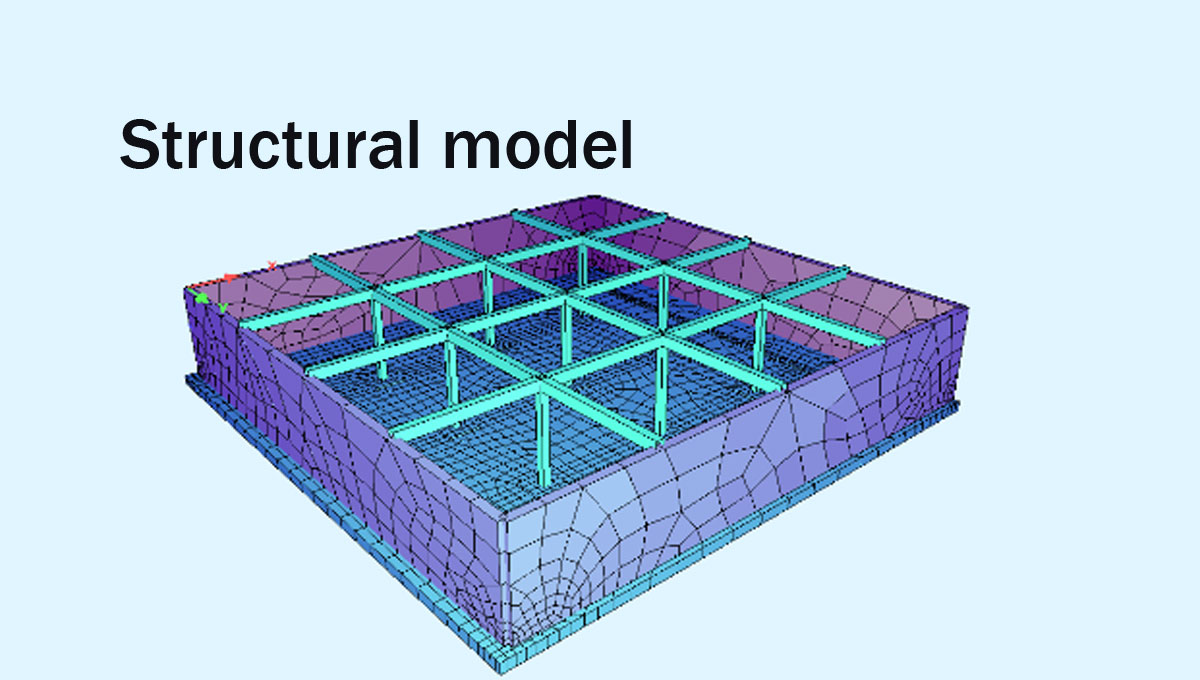

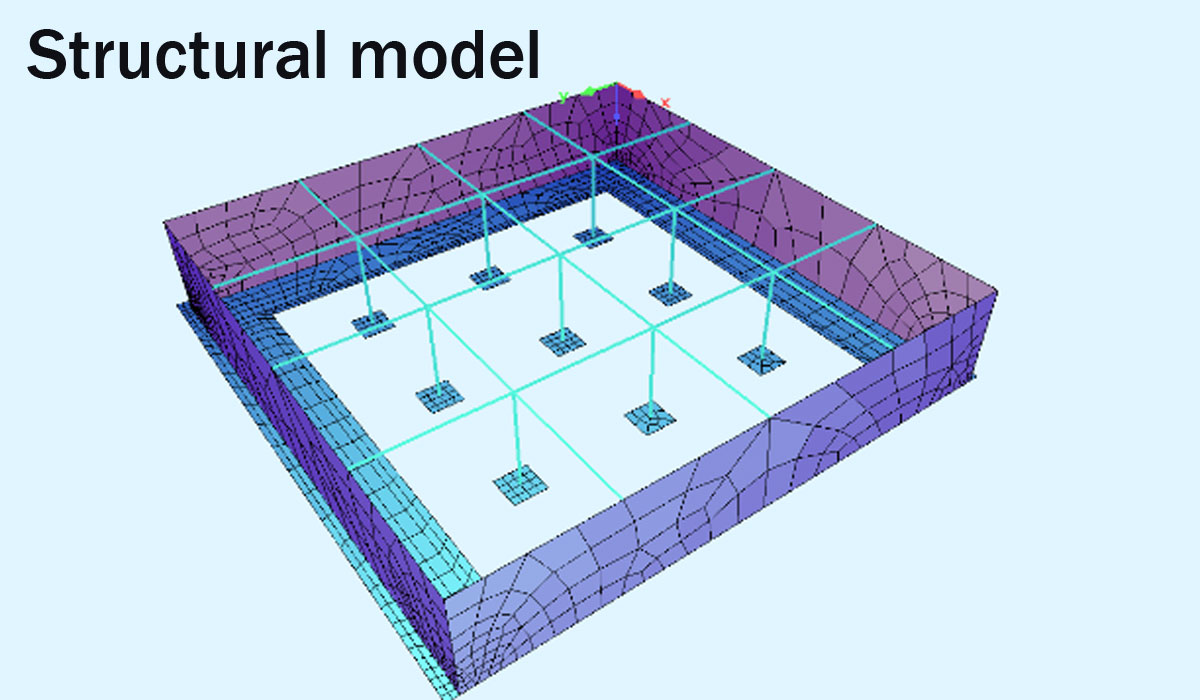

Tank arrangement: Rectangular concrete structure L/B/H 25.40/25.40/5.05m
Construction Method: Conventional using formwork
Deck section: top slab with 20cm thickness while bottom slab with 45cm and webs with 40cm
Foundation: Connecting slab
Services: Complete Structural Design
Comments: Design has been done as per EUROCODES and Cyprus Annex. Hydrodynamic pressure as per Eestergaard has been considered.
