NRJ RAMP
Construction: Arab Contractors Company (ACC) - Othman Ahmed Othman
Location: Kuwait

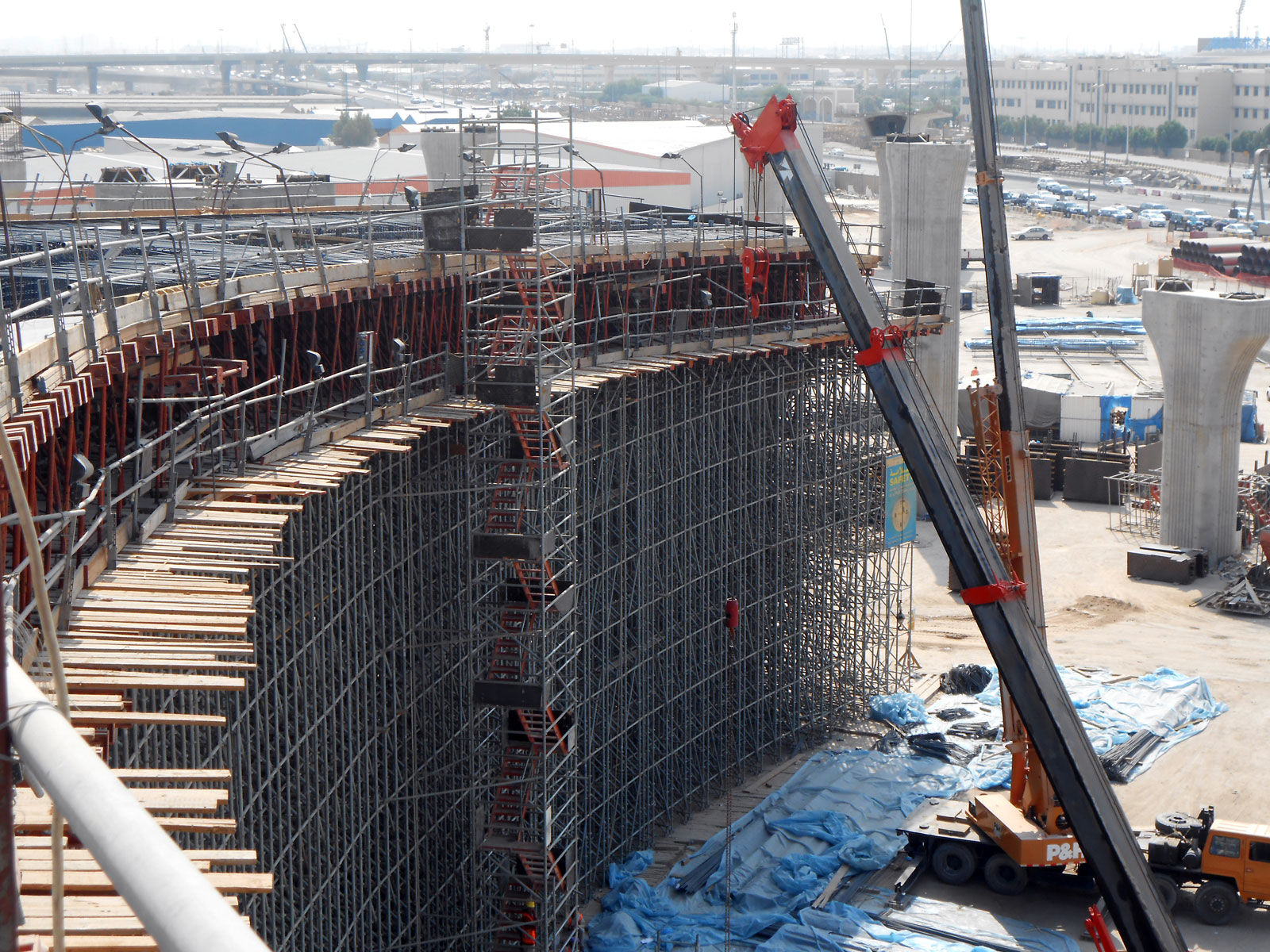

Construction Method: Cast in situ Span By Span using temporary formwork
Max span: 30.80m
Maximum pier height: 21.00m

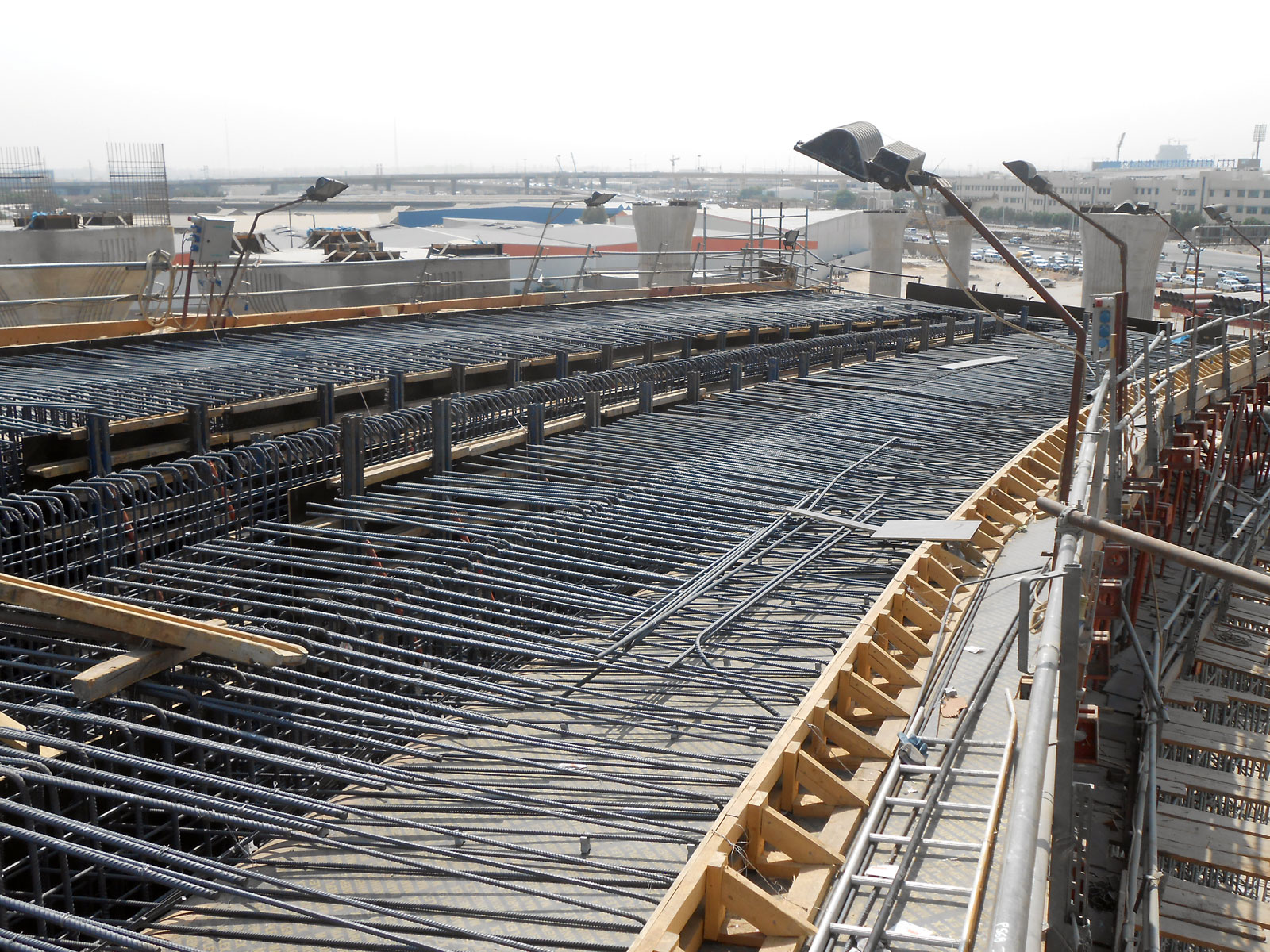

Deck section: Double Cell Reinforced Concrete Box Girder constant width w=9.00m and constant depth h=2.65m. Transverse slope 6% and Curve Radius=80m
Pier section: Rectangular Solid Section
Foundation: Deep foundation through piles diameter D=1.20m
Services: Complete Design /Bearing check/Construction Supervision

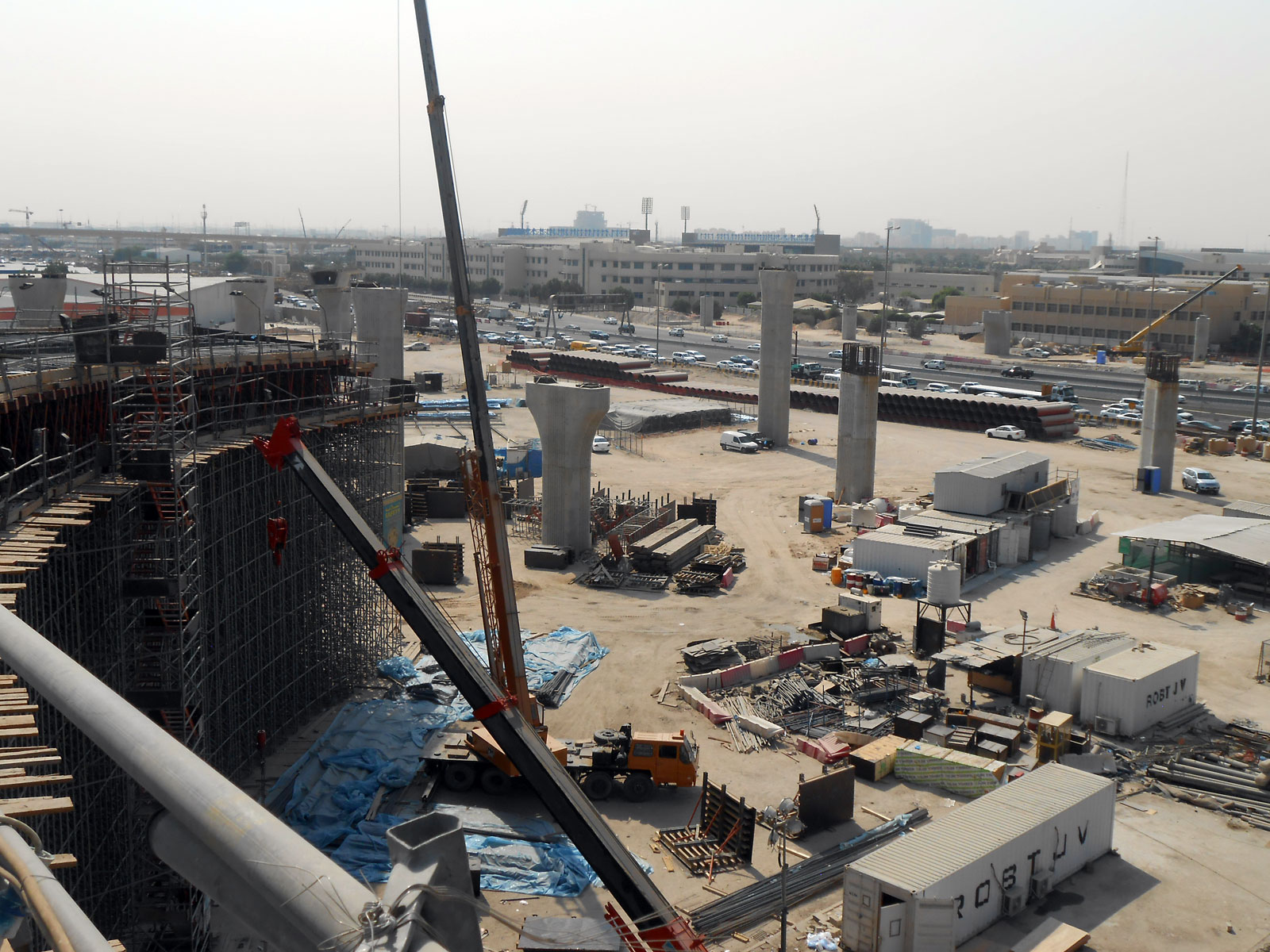

Comments: Special care in construction stages due to main Nasser Road Construction
PROJECT DETAILS
Owner: Kuwait Ministry of Public WorksConstruction: Arab Contractors Company (ACC) - Othman Ahmed Othman
Location: Kuwait
Construction Method: Cast in situ Span By Span using temporary formwork
Max span: 30.80m
Maximum pier height: 21.00m
Deck section: Double Cell Reinforced Concrete Box Girder constant width w=9.00m and constant depth h=2.65m. Transverse slope 6% and Curve Radius=80m
Pier section: Rectangular Solid Section
Foundation: Deep foundation through piles diameter D=1.20m
Services: Complete Design /Bearing check/Construction Supervision
Comments: Special care in construction stages due to main Nasser Road Construction
